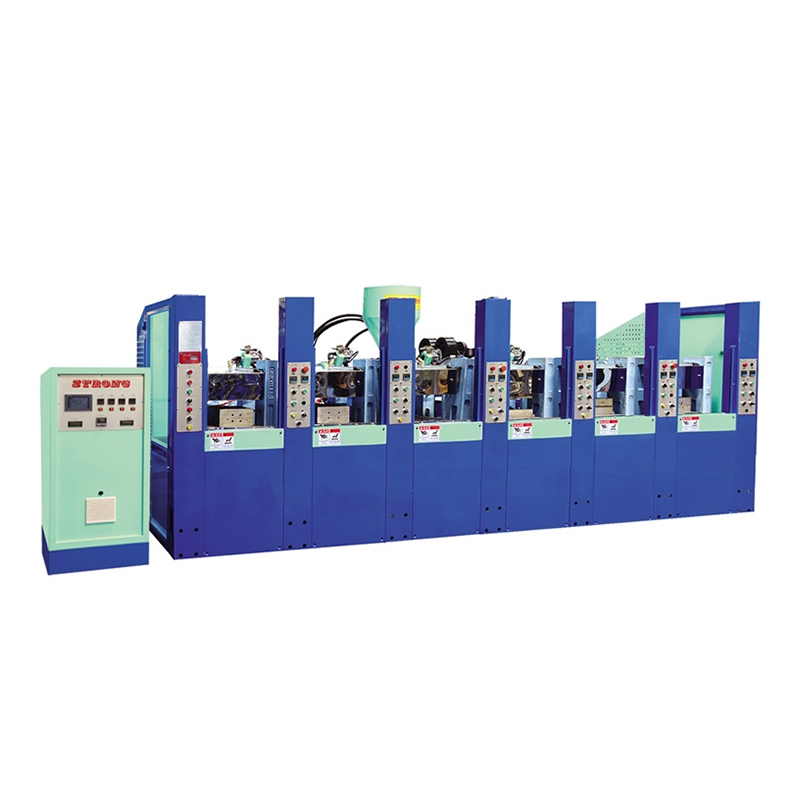

Automatic rubber/TR/TPU injection moulding machine

Product Description

The fully automatic rubber and plastic injection molding machine adopts a mechatronics design, has a high degree of automation in measurement and inspection, and has good overall reliability. The user-friendly human-machine dialogue interface makes the operation clear to the user and easy to understand. The fully automatic rubber and plastic injection molding machine has high versatility and can use a variety of raw materials to produce high-quality shoe materials. It is the choice for enterprises to maintain good competitiveness and upgrade equipment.

  • Automatic rubber/TR/TPU injection moulding machine
  • Automatic rubber/TR/TPU injection moulding machine
No previous article   |   NEXT

+ Contact us
Related products
Company
OTT RubberTech International Trading (Shanghai) Co., Ltd.
OTT RubberTech is a professional solution provider of rubber process formula, material, machinery with Mixer, Rubber Mixer, Mixing Mill, Precision Performer, Vulcanizing Press, Calender, batch-off Cooling unit, rubber Extruder, and other support plastic machines. We are professional China Automatic rubber/TR/TPU injection moulding machine supplier and custom Automatic rubber/TR/TPU injection moulding machine manufacturer, More than 15 years of experience in the rubber machinery industry； Has professional sales engineers and technicians； Provides our clients with professional advisory products and solutions； Each product is tested before packaging. Always strive to reduce the customer's procurement cost from the customer's perspective; Dedicated sourcing team; Always responsible for the after-sales service of our products. Adhering to the principle of good faith, standard, and efficient work, the company wins the market with technology and obtains credit by creating service. It will provide the customers with high quality, high efficiency, and fast service. Facing the further, we should adhere to independent innovation.
News
  • What is the difference between Banbury and Kneader?

    In the world of rubber and plastics processing, **Banbury mixers and kneaders** are like two strongmen with different personalities. While both can uniformly mix viscous ...

    READ MORE
  • Why is it called kneading?

    Regarding why this "rubbing and pressing" motion is called kneading, there's a history of linguistic evolution and a very vivid description of the action behind it. The w...

    READ MORE
  • Is a dough kneader machine worth it?

    Is buying a dough kneader really worth it?  It mainly depends on how much you love making pasta and how much you value your time. It's like a dishwasher or a robotic vacu...

    READ MORE
  • Is kneader a word?

    Yes, "kneader" is absolutely a real word.Although we may not use it frequently in everyday conversation, this word is very common in factories, bakeries, and the machiner...

    READ MORE
Message Feedback
EVA/Rubber Sole Production Line EVA Industry knowledge

Overview

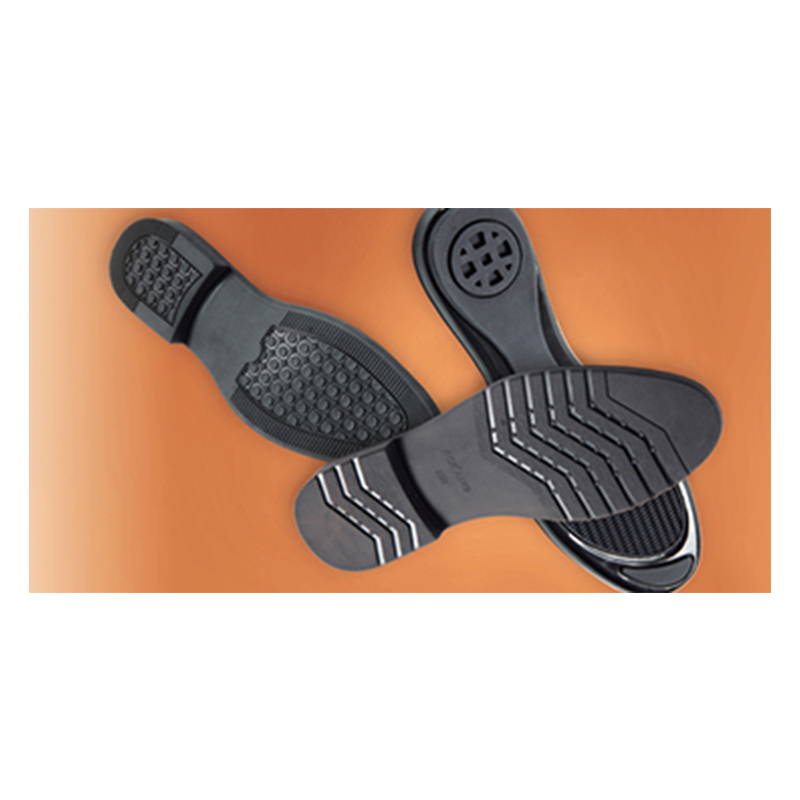

The production of EVA (Ethylene-Vinyl Acetate) and rubber soles plays a key role in footwear manufacturing, providing durable, comfortable soles for various shoe types. EVA soles are light, cushioned, and used in sports and casual shoes, while rubber soles are durable and offer excellent grip, often used for work boots and outdoor footwear.

Key Materials

  1. EVA (Ethylene-Vinyl Acetate):

    • EVA is a lightweight, flexible material known for its shock-absorbing properties. It’s ideal for comfortable, cushioning soles, commonly found in sports and casual footwear.
    • EVA soles provide excellent comfort, wear resistance, and durability. They come in different hardness levels, depending on the shoe’s needs.

  2. Rubber:

    • Rubber soles are made from natural or synthetic rubber compounds, known for their durability and traction.
    • Natural rubber provides flexibility, while synthetic rubbers (like SBR or nitrile) offer specialized properties like oil resistance or durability.

Main Stages in EVA/Rubber Sole Production

1. Material Preparation (Compounding)

  • EVA Compounding: EVA pellets are mixed with additives like foaming agents, plasticizers, and colorants to achieve the desired properties.

  • Rubber Compounding: Rubber is mixed with fillers, curing agents (like sulfur), and plasticizers to ensure durability and flexibility.

    Compounding Equipment:

    • Banbury Mixer: Used for mixing large batches of rubber compounds.
    • Two-Roll Mills: Refine rubber compounds to ensure consistency.

2. Molding and Shaping

  • EVA Sole Production:

    • Injection Molding: EVA is injected into molds under heat and pressure, solidifying into the sole shape.
    • Compression Molding: EVA is compressed into molds to form soles.
    • Foaming Process: EVA can be foamed to make lightweight soles with added cushioning.

  • Rubber Sole Production:

    • Compression Molding: Rubber is placed in molds and heated to form the sole.
    • Injection Molding: Rubber is injected into molds under high pressure for detailed designs.

3. Curing/Vulcanization

  • Rubber Vulcanization:

    • Vulcanization involves heating rubber with sulfur to crosslink polymer chains, improving its elasticity and durability.
    • Vulcanizing Presses apply heat and pressure during curing.

  • EVA Curing:

    • EVA doesn’t undergo traditional vulcanization, but is heated in the mold to solidify and maintain its shape.

4. Cooling and Demolding

  • Cooling: After molding, the soles are cooled, typically in water baths or cooling tunnels.
  • Demolding: The molded soles are removed from molds and any excess material is trimmed.

5. Finishing and Quality Control

  • Trimming and Cutting: Excess material is removed using cutting machines to ensure clean edges.

  • Surface Treatment: Texturing or coating may be applied for grip and durability.

  • Quality Testing: Soles undergo tests like durability, compression, slip resistance, and visual inspection to meet standards.

6. Packaging and Shipping

  • Once quality control is passed, soles are packaged and prepared for shipment using automated packaging lines.

Key Equipment in EVA/Rubber Sole Production

  • Injection Molding Machines: Essential for shaping soles by injecting material into molds.
  • Compression Molding Presses: Used for forming EVA and rubber soles under pressure.
  • Banbury Mixers: Mix raw rubber compounds.
  • Two-Roll Mills: Refine rubber and ensure consistency.
  • Cooling Systems: Cooling tunnels or water baths are used to cool soles after molding.

Applications of EVA/Rubber Soles

  • Sports Footwear: EVA soles are used in running, basketball, and athletic shoes for comfort and cushioning.
  • Casual Footwear: EVA is also used in sandals and casual shoes.
  • Work Boots and Outdoor Footwear: Rubber soles are ideal for heavy-duty footwear due to their durability and traction.
  • Fashion Footwear: Both EVA and rubber soles are used in luxury shoes for comfort and style.
