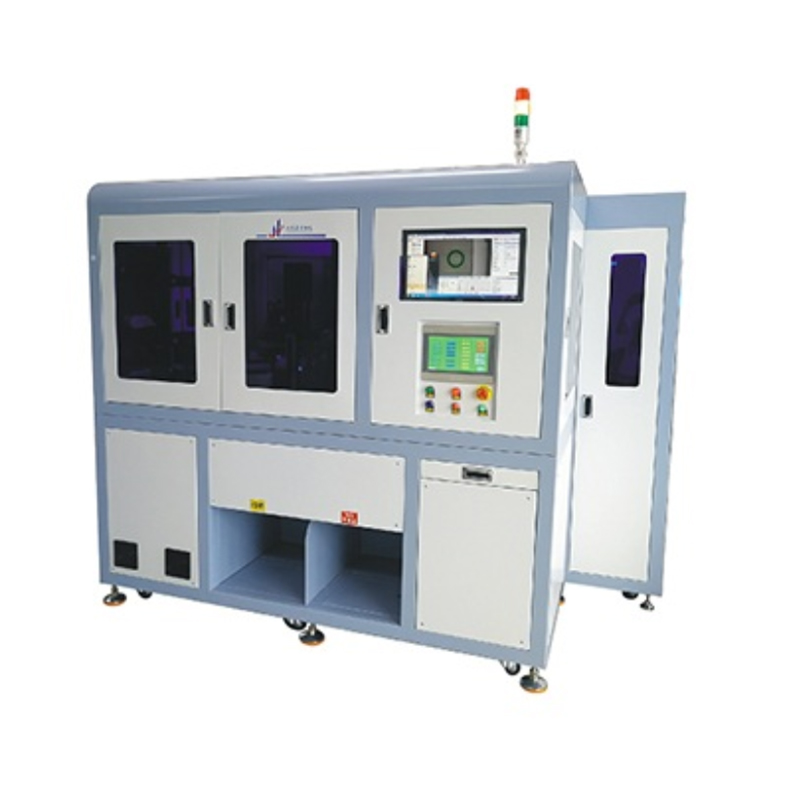

O-ring visual inspection machine

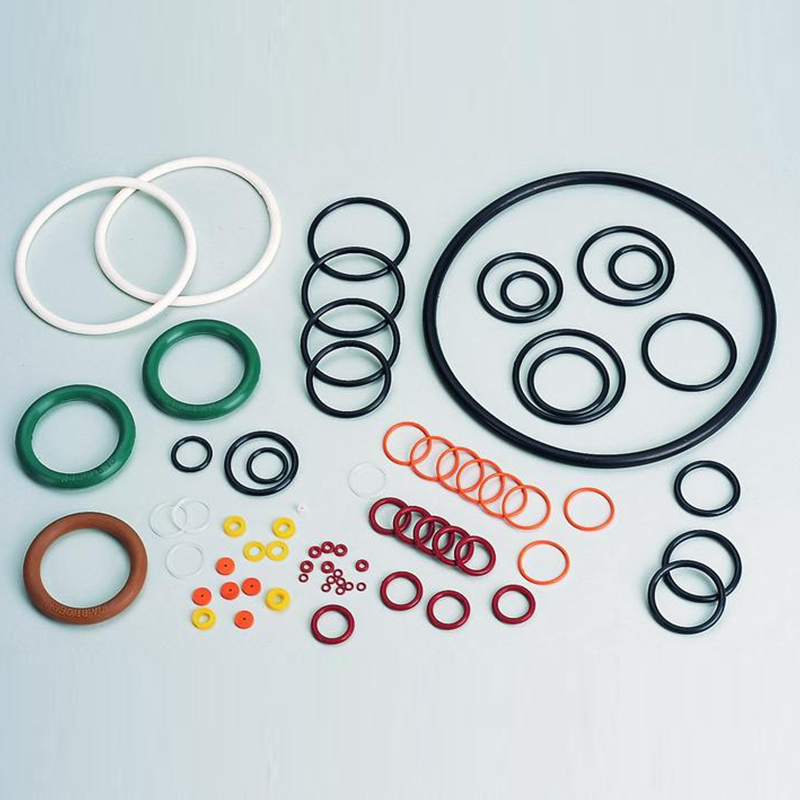

The production of O-rings—one of the most commonly used sealing devices in industries such as automotive, aerospace, and manufacturing—requires specialized equipment designed to ensure precision, quality, and durability. O-rings are typically used to seal connections and prevent leakage of gases or liquids in static or dynamic applications. Given their critical role in maintaining the integrity of machines and systems, the manufacturing of O-rings involves highly specialized processes and machinery.

Key Characteristics of O-Ring Special Equipment

1. Precision Manufacturing:

   • O-rings must be manufactured to extremely precise dimensions to ensure an effective seal. Any deviation from the required size or surface finish can lead to leakage, inefficiency, or failure of the sealed system. Special equipment is used to ensure these tight tolerances are met consistently.

2. Material Handling and Mixing:

   • The rubber or elastomer used for O-rings can vary depending on the application. Special equipment is used to mix the right compounds, such as NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), FPM/Viton, silicone, or PTFE, with curing agents, fillers, and other additives to achieve the required properties of the O-ring.

3. Molding and Curing:

   • O-ring production requires specialized molding equipment, as the O-ring shape must be consistently formed during the manufacturing process. Curing or vulcanization is another critical step that uses heat and pressure to cross-link the rubber polymers, ensuring the O-ring has the necessary strength, elasticity, and resistance to wear, temperature, and chemicals.

4. Automation and High Throughput:

   • Given the large-scale demand for O-rings in various industries, automation is key. Special equipment is designed to handle high volumes of production while maintaining consistent quality. Automation in the molding, curing, and cutting stages can help increase production speed and reduce human error.

Key Stages in O-Ring Production

1. Material Preparation

• The rubber or elastomer compound used to manufacture O-rings is first prepared by mixing the base rubber with specific additives. This is done in internal mixers or Banbury mixers, where the compound is blended at high temperatures and pressures to ensure uniformity.

2. Extrusion of O-Ring Profile

• The rubber compound is fed into an extruder, which forces the material through a die to form a continuous O-ring profile. This profile is then cut into individual O-rings of the desired size. The extrusion process must be controlled carefully to ensure that the O-ring's dimensions are precise.

3. Molding (Compression/Injection Molding)

• Compression molding is one of the most common techniques used to form O-rings. The O-ring profile is placed into a heated mold, and pressure is applied to form the final shape. The rubber material then undergoes vulcanization during this process, which cross-links the polymers to make the rubber elastic and durable.

  • Injection molding may also be used for higher-volume production of smaller O-rings. In this process, the rubber compound is injected under high pressure into a mold to form the O-ring shape.

4. Curing/Vulcanization

• The molded O-rings are then cured in vulcanizing presses or vulcanizing ovens. The curing process involves applying heat and pressure to activate the curing agents within the rubber compound, resulting in cross-linking of the rubber molecules. This process is essential for imparting elasticity, chemical resistance, and other desired mechanical properties to the O-ring.

5. Post-Curing and Cooling

• After curing, O-rings are cooled down to room temperature using cooling systems like water baths or air coolers. This step is essential for ensuring that the O-ring retains its final shape and hardness. Post-curing may also be necessary for some materials to further improve their properties.

6. Inspection and Quality Control

• O-rings are rigorously inspected to ensure they meet dimensional tolerances and performance standards. Common inspections include:
  • Visual Inspection: Checking for defects such as surface cracks, bubbles, or irregularities.
  • Dimensional Measurement: Ensuring the O-ring's diameter, cross-section, and overall size meet specifications.
  • Physical Testing: Measuring hardness (using Shore A scale), compression set, and elongation.
  • Pressure Testing: Ensuring the O-ring maintains its seal under pressure.

7. Cutting and Packaging

• Once the O-rings have passed quality control, they are cut to the required length (if needed) and packaged for shipment. Packaging can vary depending on customer requirements, such as bulk packaging or retail-ready packing in blister packs or boxes.
